Getting started with Firefox OS

Book of Fox

by Stoyan Stefanov

Deploying your app

Once you have a running app, next steps are:

  • experience the app on a real device

  • spread it around so others can enjoy it too

Testing on the device

Now that you know how to write and debug an application and also test in the simulator, you're naturally eager to see it running on a real device. Good news: you can do this easily using the R2D2B2G extension. Bad news: there's some setup upfront.

adb

You'll need to setup a command-line utility called adb which stands for Android Debug Bridge. You run this utility on your development machine and use it to connect to your phone, to browse the file system and copy (pull, push) files between the computer and the phone.

R2D2B2G comes with a copy of adb so you don't have to install it separately. However you have to setup the phone and the computer to "talk" to each other.

First, enable remote debugging on the phone: go to the Settings app, then select menu Device Information / More Information / Developer. Once there, check the "Remote debugging" option.

Then you need to setup your developer machine. The setup is different depending on your operating system.

If you're on a Mac, the good news is that it just works. On Windows you need to install drivers specific to your computer manufacturer. The details can be found here: https://developer.android.com/tools/extras/oem-usb.html

On Linux you need to create the file:

/etc/udev/rules.d/51-android.rules

In this file add the line:

SUBSYSTEM=="usb", ATTR{idVendor}=="05c6", MODE="0666", GROUP="plugdev"

The id string 05c6 is specific to the phone you have, so you may need to replace it with the one for your test phone. Here are some IDs you might find useful:

  • 05c6 - Geeksphone device made by Qualcomm

  • 19d2 - ZTE device, the maker of several test devices, e.g. Unagi, Inagi and Otoro

  • 18d1 - Google device

  • 04e8 - Samsung

Finally, set the permissions:

chmod a+r /etc/udev/rules.d/51-android.rules

If all goes as planned, when you open the R2D2B2G extension you'll see the new option to push the app to the device.

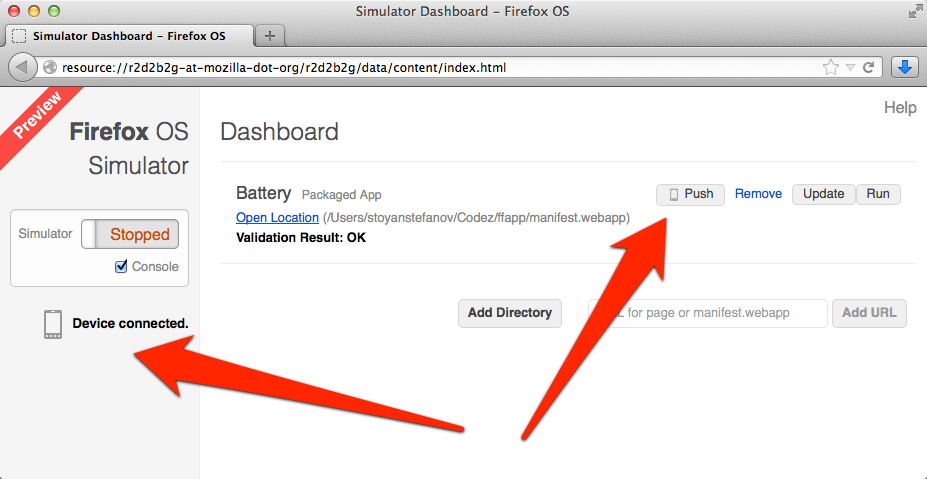

images/2_devicepush.png
Figure 1. New elements in the R2D2B2G UI

Standalone adb

It's great that R2D2B2G comes bundled with adb. But if you run into troubles with the setup (and you're not sure if the extension's UI is to blame) or if you want more hands-on development, it will be beneficial to install your own copy of adb.

To do so:

  • Download the "ADT bundle" zip file from http://developer.android.com/sdk/index.html (ADT stands for Android Developer Tools)

  • Unzip to a convenient location, e.g. ~/Codez/adt

  • Add the path to the subdirectory sdk/platform-tools found in ADT to your OS PATH. This is where the adb utility is found and it's good to have it handy.

For example, after unzipping the ADT bundle in your ~/Downloads folder:

$ mv ~/Downloads/adt-bundle-mac-x86_64-20130219 ~/Codez/adt
$ export PATH=~/Codez/adt/sdk/platform-tools:$PATH

The end result you're looking for is being able to type adb devices from any directory and make sure it "sees" your phone.

$ adb devices
List of devices attached
full_unagi device

Then, just for fun, try adb shell and just like that, miraculously, you can browse the files on your phone.

Pushing the app to the phone

Once the setup is behind you, things can't be any easier. Open the R2D2B2G dashboard and click the "Push" button found next to your app.

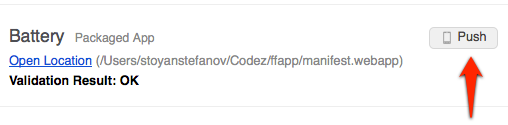

images/2_pushbutton.png
Figure 2. Pushing to the device

The phone will ask you for permission to accept a remote connection. Say OK.

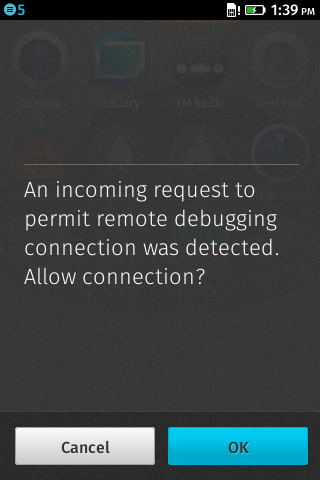

images/2_permission.png
Figure 3. Allow a remote connection

And this is it. You'll see an "Battery installed" message and the app is now available on your phone.

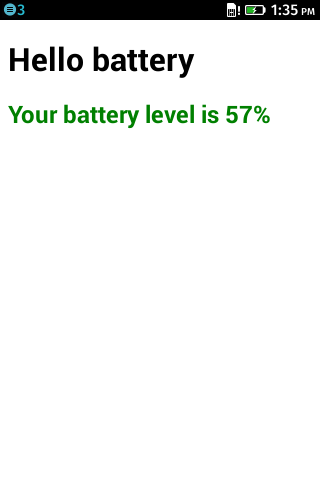

images/2_pushed.png
Figure 4. The app running on the device
